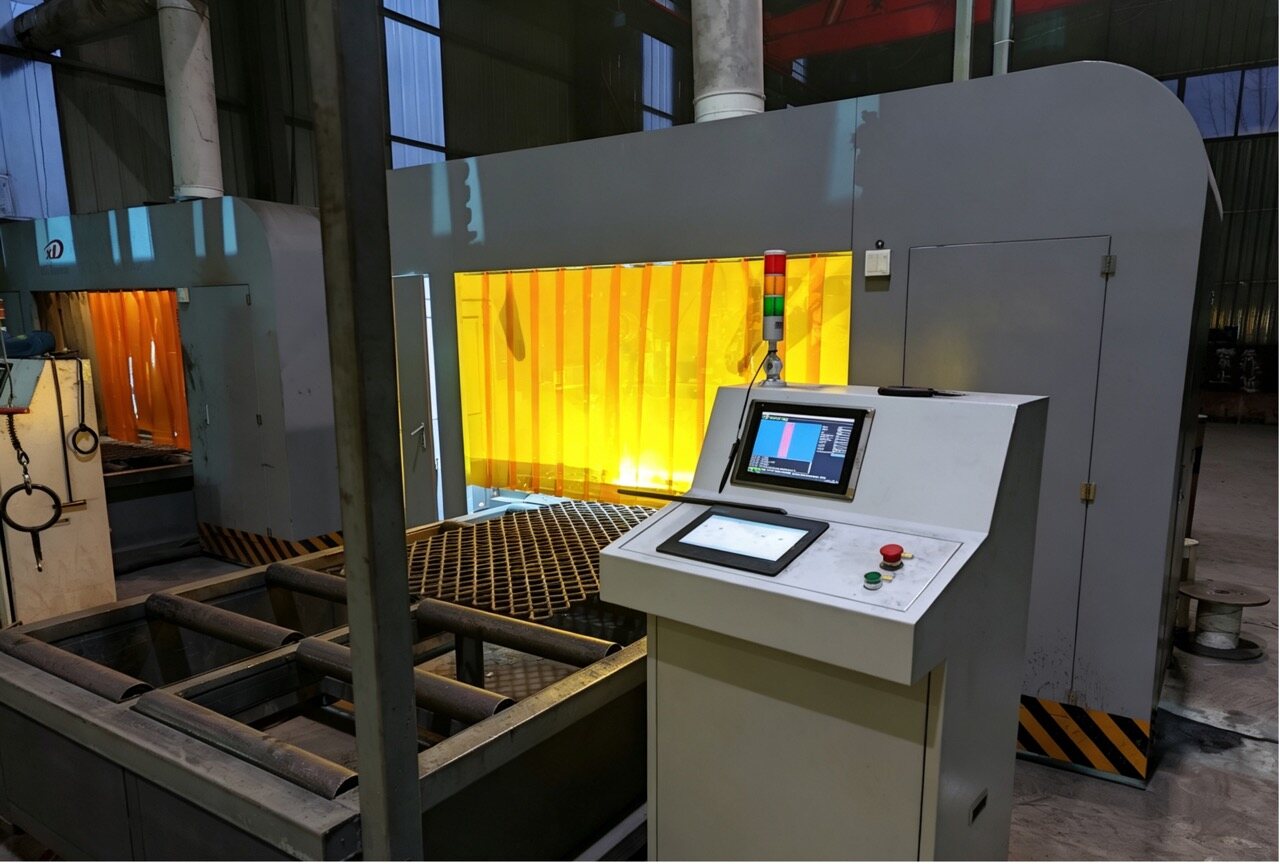

Screen Mesh Welding Scan Robot/Equipment
Visual spot recognition for efficient dual-gun gas shielded welding. Adapts to wire diameters of 6-16mm and hole sizes of 5-80mm, with 24 hours of continuous operation.
Product Overview
The Smart Screen Scanning Welding Robot is an automated system designed specifically for screen welding. Leveraging advanced visual recognition technology and dual-gun gas-shielded welding, it enables fully automatic screen welding.
Workpiece Information
- • Workpiece Width: Standard machine 1600mm (max); other widths available upon request
- • Workpiece Length: Unlimited
Process Features
- • Uses gas-shielded welding process
- • Gantry fixed, workpiece moves
- • Dual welding guns and dual welders for improved efficiency
- • Manual loading and unloading; welding process is fully automated
Key System Features
Computer Vision
Equipped with an advanced vision recognition system, it precisely identifies solder joint locations and ensures welding accuracy even when material dimensions vary.
No coding required
Users don't need complex programming. The system uses intelligent learning to quickly adapt to welding requirements for different workpieces.
Automated actions
Eliminate reliance on professional welders. The system performs welding tasks independently, reducing labor costs.
24 hours of continuous operation
Designed for continuous, non-stop operation to significantly boost production efficiency.
Identify multiple solder joints at once
Simultaneously identifies multiple solder points for rapid batch soldering, reducing production cycle time.
Workpiece Error Adaptability
The system is highly adaptable, compensating for workpiece errors to ensure welding quality.
Video Case Studies
Key Technical Specifications
| Maximum Move Speed | 240mm/s |
| Servo motor power | 0.4KW* 6、1.5KW* 1 |
| Compressed air | 0.4-0.8MPA |
| Welding Voltage | 16-50 stepless adjustment |
| Welding current | 100-500A |
| Wire diameter | 0.8mm-1.2mm |
| Protective gas consumption | 15L/MIN |
| Welding Torch Rotation Diameter Adjustment | 0-5mm |
| Welding Method | Gas Metal Arc Welding |
