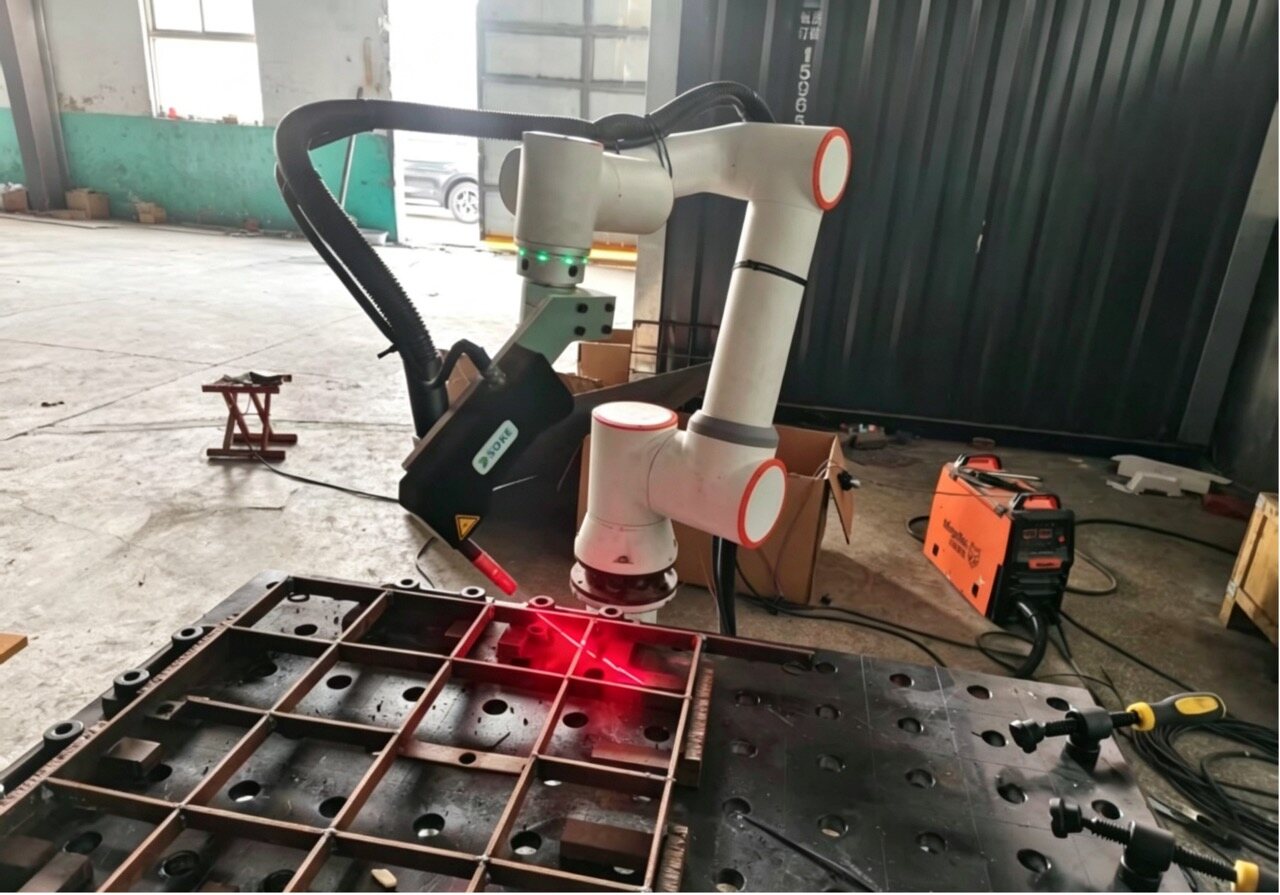

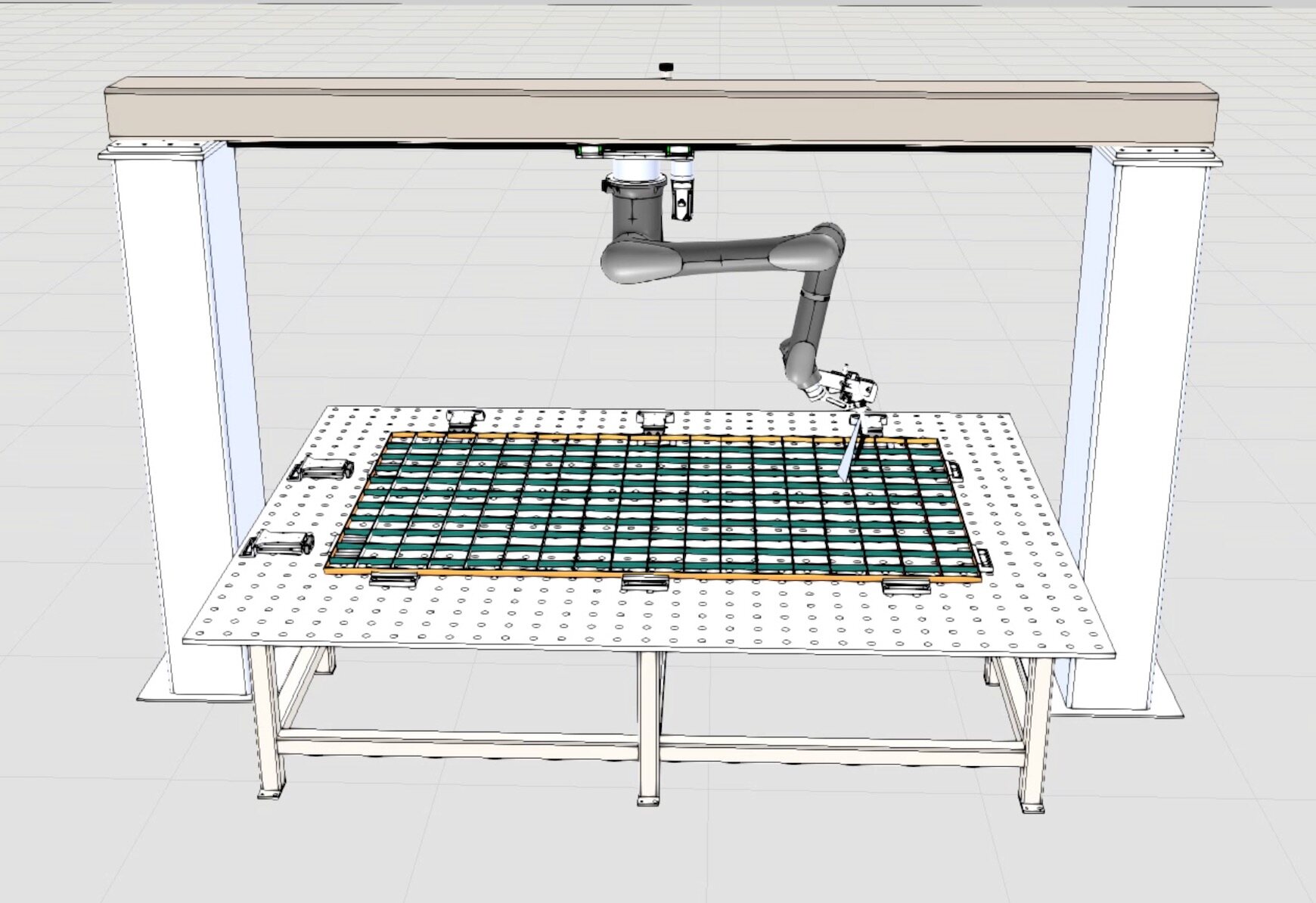

Automatic Welding Robot for Steel Grating/Grate Panels
Leveraging 3D laser vision scanning, input workpiece parameters to automatically generate scan-weld paths for automated steel grating welding.
Product Overview
Designed for steel grating manufacturers, this system addresses industry pain points such as labor shortages in traditional manual welding, inconsistent weld quality, and high manufacturing costs. Leveraging 3D laser vision scanning technology, it automatically generates scan and welding paths based on input workpiece parameters to enable automated welding of steel grating panels. This reduces reliance on skilled welders while ensuring consistent weld quality across mass production batches.
Product Features
| Current Issue | Solutions |
|---|---|
| Skilled welders are hard to recruit, labor costs are high, and staff turnover is significant. | Robotized automated welding with integrated visual scanning sensors reduces reliance on manual labor and enables continuous long-term production. |
| Manual welding is prone to missed joints, cold soldering, inconsistent weld quality, and relies heavily on operator experience. | Laser vision scanning identifies weld seams, automatically plans paths for uniform and stable weld points, and eliminates human error. |
| Excessive welding fumes and poor working conditions increase occupational health risks and labor liabilities. | Robotic welding autonomy improves workshop conditions and enables human-to-machine substitution. |
Video Case Studies
Product Specifications
| System Axle Count | 7 axis |
| Robot Working Radius | 1.4m |
| External Axis Travel Range | 3m |
| Maximum Move Speed | 1800mm/s |
| Welding Method | Gas Metal Arc Welding |
| Welding current | 30-350A |
| Welding Voltage | 15.5-31.5V |
| Wire diameter | 0.8-1.2mm |
| Protective gas consumption | 15-20L/Min |
| Working air supply pressure | ≥0.6Mpa |
| Desk type | Single Station |
| Core Features | Teach-free welding: Enter workpiece parameters to automatically generate scan and weld paths. |
| Applicable Workpiece | Carbon Steel Grating & Grille Panels |
